Model Whirlpool 1234^0A GAS RANGE – Common Parts & Diagrams
08 - SECTION

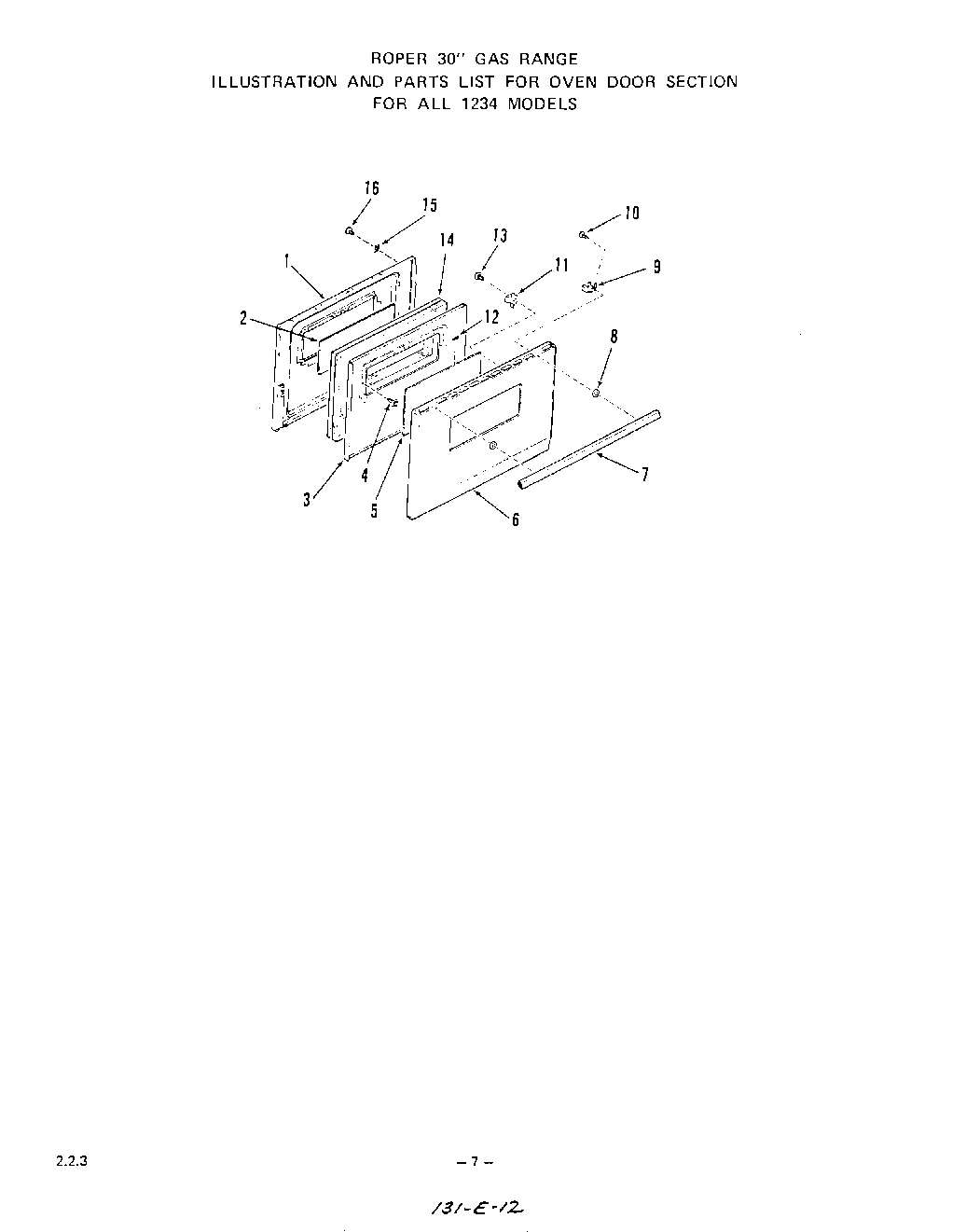

05 - OVEN DOOR

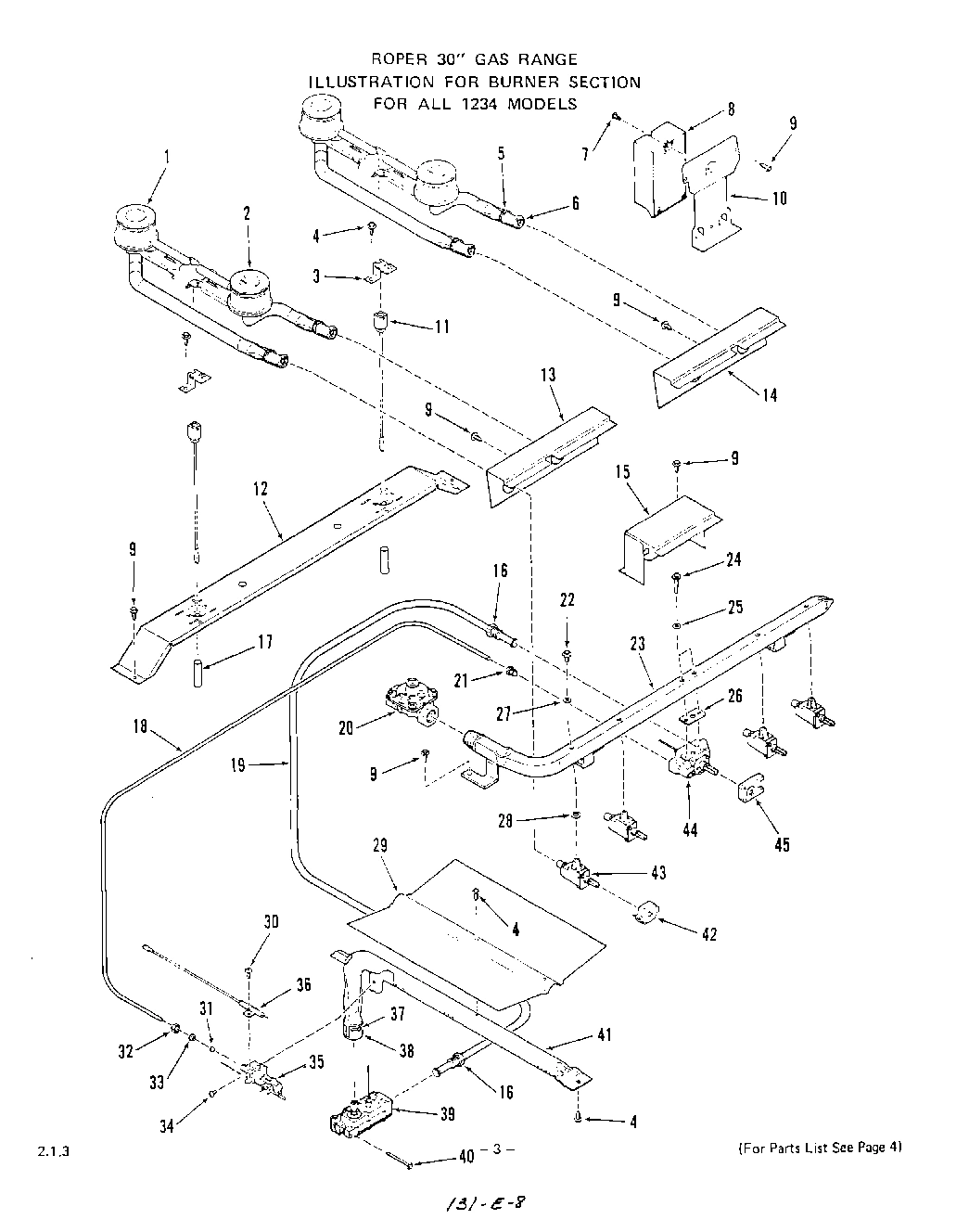

03 - BURNER

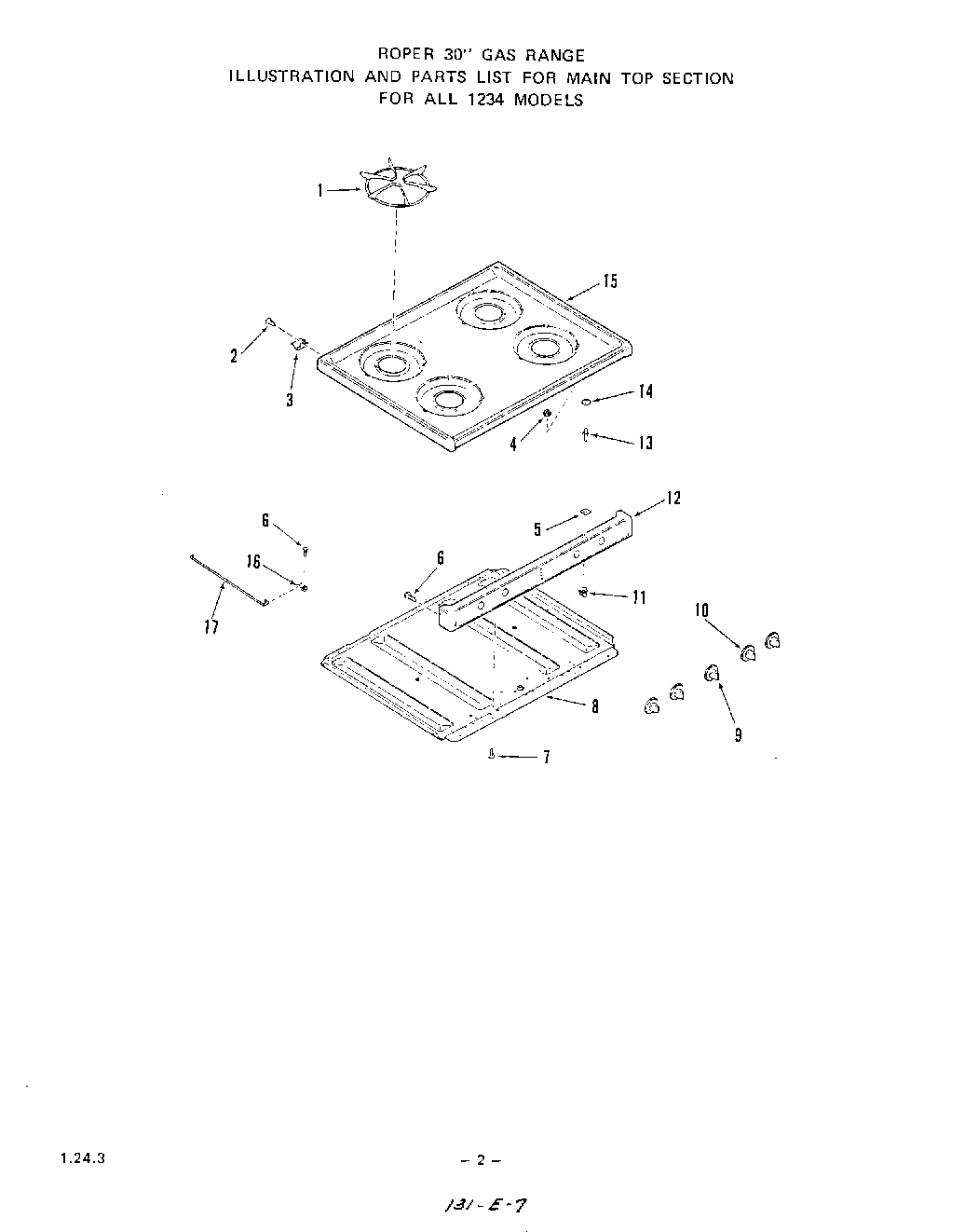

02 - MAIN TOP
04 - BODY

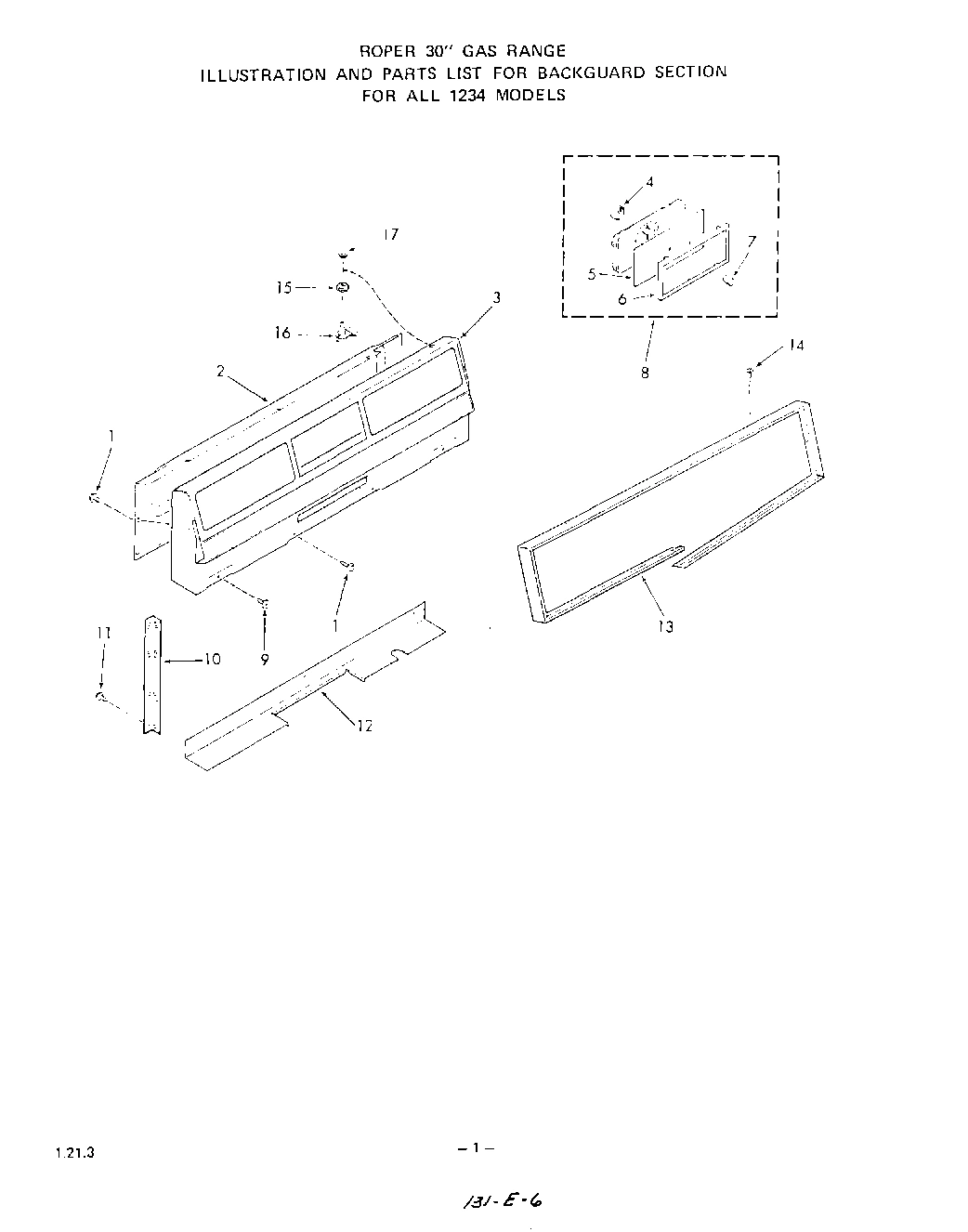

01 - BACKGUARD
06 - ROTISSERIE KIT 1006504 , GRIDDLE
Common parts from model Whirlpool 1234^0A GAS RANGE
xWire Harness WPL ARI7708A75 Contact Us For Availability
1
Top Grate (4 Required) WPL 316786 Contact Us For Availability
1
Rear Top Burner-Lt. or Rt. (Inc`s. 5 & 6) WPL 310197 Contact Us For Availability
1
Lining-Oven Door WPL 296205 Contact Us For Availability
2
Wire Cover-Backguard WPL 320767 Contact Us For Availability
2
Front Top Burner-Lt. or Rt. (Inc`s. 5 & 6) WPL 310196 Contact Us For Availability
2
Inner Glass-Oven Door WPL 299921 Contact Us For Availability
3
Pad-Body Side (2 Required) WPL 303513 Contact Us For Availability
3
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
3
Crosstie WPL 325634 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Retainer-Insulation WPL 325026 Contact Us For Availability
4
White-Right WPL 323084 Contact Us For Availability
4
White-Left WPL 323085 Contact Us For Availability
4
Almond-Right WPL 323092 Contact Us For Availability
4
Almond-Left WPL 323093 Contact Us For Availability
4
Body Side WPL ARI7705A59 Contact Us For Availability
4
Keps Nut 8-32 WPL 239764 Contact Us For Availability
4
Clock Motor WPL 283296 Contact Us For Availability
4
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
5
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
5
Washer WPL 310218 Contact Us For Availability
5
Clock Glass WPL 284183 Contact Us For Availability
5
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
5
Outer Glass-Oven Door WPL 302014 Contact Us For Availability
6
Broiler Drawer WPL 305259 Contact Us For Availability
6
Air Shutter WPL 301910 Contact Us For Availability
6
Front Panel-Oven Door (White) WPL 310373 Contact Us For Availability
6
Front Panel-Oven Door (Almond) WPL 310374 Contact Us For Availability
7
Broiler Pan WPL 290171 Contact Us For Availability
7
Handle-Oven Door WPL 292240 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
7
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
8
Broiler Pan Grid WPL 313071 Contact Us For Availability
8
Spacer-Door Handle WPL 302343 Contact Us For Availability
8
Burner Box Bottom WPL 320408 Contact Us For Availability
8
Clock w/4 Hr. Timer (Inc`s. Keys 4,5,6 & 7) WPL 315261 Contact Us For Availability
8
Module-Spark Igniter WPL 318430 Contact Us For Availability
9
Spring-Oven Door (2 Required) WPL 296170 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
9
Knob-Oven Thermostat WPL 322170 Contact Us For Availability
9
Spacer-Oven Door WPL 296224 Contact Us For Availability
10
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
10
Knob-Gas Valve (4 Required) WPL 320920 Contact Us For Availability
10
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
10
Support-Spark Igniter WPL 318439 Contact Us For Availability
11
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
11
Catch-Main Top Strike (2 Req) WPL 24667 Contact Us For Availability
11
Left WPL 312455 Contact Us For Availability
11
Right WPL 312598 Contact Us For Availability
11
Electrode-Spark Igniter WPL ARI7704A38 Contact Us For Availability
11
Retainer-Oven Door Glass WPL 299592 Contact Us For Availability
12
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
12
White WPL 324531 Contact Us For Availability
12
Almond WPL 324535 Contact Us For Availability
12
Manifold Panel WPL ARI7702A32 Contact Us For Availability
12
Bottom-Backguard Wire Cover WPL 296569 Contact Us For Availability
12
Support-Top Burner WPL 313375 Contact Us For Availability
12
Cushion-Door Glass WPL 282259 Contact Us For Availability
13
Oven Body WPL 322913 Contact Us For Availability
13
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
13
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
13
Bezel-Backguard WPL 310603 Contact Us For Availability
13
Valve Cover-Left WPL 321172 Contact Us For Availability
14
Insulation - Oven Back WPL 296140 Contact Us For Availability
14
Washer WPL 99279 Contact Us For Availability
14
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
14
Valve Cover-Right WPL 321170 Contact Us For Availability
14
Insulation (2 Req) WPL 296142 Contact Us For Availability
15
Main Back WPL 322910 Contact Us For Availability
15
White WPL 316813 Contact Us For Availability
15
Almond WPL 316814 Contact Us For Availability
15
Main Top WPL ARI7703A25 Contact Us For Availability
15
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
15
Wire Cover-Oven Thermostat WPL 318460 Contact Us For Availability
15
Washer WPL 21067 Contact Us For Availability
16
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
16
Clamp WPL 285945 Contact Us For Availability
16
Push Switch-Oven Light WPL 298793 Contact Us For Availability
16
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
16
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
16
Module WPL 318427 Contact Us For Availability
16
Backguard WPL 320765 Contact Us For Availability
16
Switches-Gas Valve & Thermostat WPL 322226 Contact Us For Availability
17
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
17
Support-Main Top WPL 315379 Contact Us For Availability
17
Knurled Nut WPL 87403 Contact Us For Availability
17
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
18
Flue Deflector WPL 300917 Contact Us For Availability
18
Tubing 3/16`` WPL 322446 Contact Us For Availability
19
Clip WPL 106767 Contact Us For Availability
19
Tubing 3/8`` WPL 295037 Contact Us For Availability
20
Range Service Cord WPL 235822 Contact Us For Availability
20
Pressure Regulator WPL 324529 Contact Us For Availability
21
Wire Shield-Oven Light WPL 318443 Contact Us For Availability
21
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
22
Disconnect WPL 232150 Contact Us For Availability
22
Mounting Screw (Inc`s. 27) WPL 311455 Contact Us For Availability
23
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
23
Manifold Pipe WPL 318481 Contact Us For Availability
24
Clip-Thermostat Bulb (2 Required) WPL 115533 Contact Us For Availability
24
Mounting Screw (2 Req. for 44) WPL 318478 Contact Us For Availability
25
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
25
Gasket (For 24) WPL 318658 Contact Us For Availability
26
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
26
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
27
Right WPL 303132 Contact Us For Availability
27
Left WPL 303133 Contact Us For Availability
27
Hinge-Oven Door WPL ARI7706A86 Contact Us For Availability
27
Gasket (For 22) WPL 304241 Contact Us For Availability
28
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
29
Baffle - Oven Burner WPL 302729 Contact Us For Availability
30
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
30
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
31
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
31
Orifice Cup Only (For 35) WPL 318485 Contact Us For Availability
32
Heat Reflector WPL 325028 Contact Us For Availability
32
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
33
White WPL 325636 Contact Us For Availability
33
Almond WPL 325637 Contact Us For Availability
33
Front Panel-Broiler Drawer (Inc`s. 32) WPL ARI7707A78 Contact Us For Availability
33
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
34
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
35
Pilot Only (Inc`s. 31) WPL 318486 Contact Us For Availability
36
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
36
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
37
Washer WPL 303963 Contact Us For Availability
37
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
38
Shoulder Screw 10-32x1/2`` WPL 289730 Contact Us For Availability
38
Air Shutter WPL 312988 Contact Us For Availability
39
Control Valve (Inc`s. 31 & 35) WPL 318482 Contact Us For Availability
40
Guide-Oven Rack (Rt. or Lt.) WPL 305409 Contact Us For Availability
40
Screw 10-32x2`` WPL 112365 Contact Us For Availability
41
Oven Rack (2 Required) WPL 305408 Contact Us For Availability
41
Oven Burner (Inc`s. 29,37 & 39) WPL 319255 Contact Us For Availability
42
Oven Bottom WPL 296069 Contact Us For Availability
42
Switch-Valve (1 Ea. Req. for 43) WPL 312457 Contact Us For Availability
43
Oven Lamp Bulb WPL 111257 Contact Us For Availability
43
Gas Valve (4 Required-Inc`s Keys 22 WPL 324987 Contact Us For Availability
44
Front Frame WPL 316994 Contact Us For Availability
44
WPL 318477 WPL 318477 Contact Us For Availability
45
Side Seal-Oven Door (Rt. or Lt. WPL 314573 Contact Us For Availability
45
WPL 318432 WPL 318432 Contact Us For Availability
46
WPL 314574 WPL 314574 Contact Us For Availability
48
WPL 69603 WPL 69603 Contact Us For Availability
49
WPL 302267 WPL 302267 Contact Us For Availability
51
WPL 296137 WPL 296137 Contact Us For Availability
54
WPL 325027 WPL 325027 Contact Us For Availability
55
WPL 87883 WPL 87883 Contact Us For Availability
× ![]()
